Core Product Advantages
1. Built‑in integrated baffle design (Major upgrade)
Unlike the conventional UK series that requires purchasing separate external baffles / partition plates for isolation, the MRK terminal block adopts a **built‑in baffle**. No extra accessories are needed after stacking the terminals on the DIN rail. It saves your purchasing cost, speeds up cabinet assembly work, and effectively prevents arc‑flash risks between adjacent circuits.
2. User‑friendly installation performance
- Non‑slip snap‑on DIN‑rail locking foot: Firm clamping on standard DIN rail, not easy to shift or fall off.

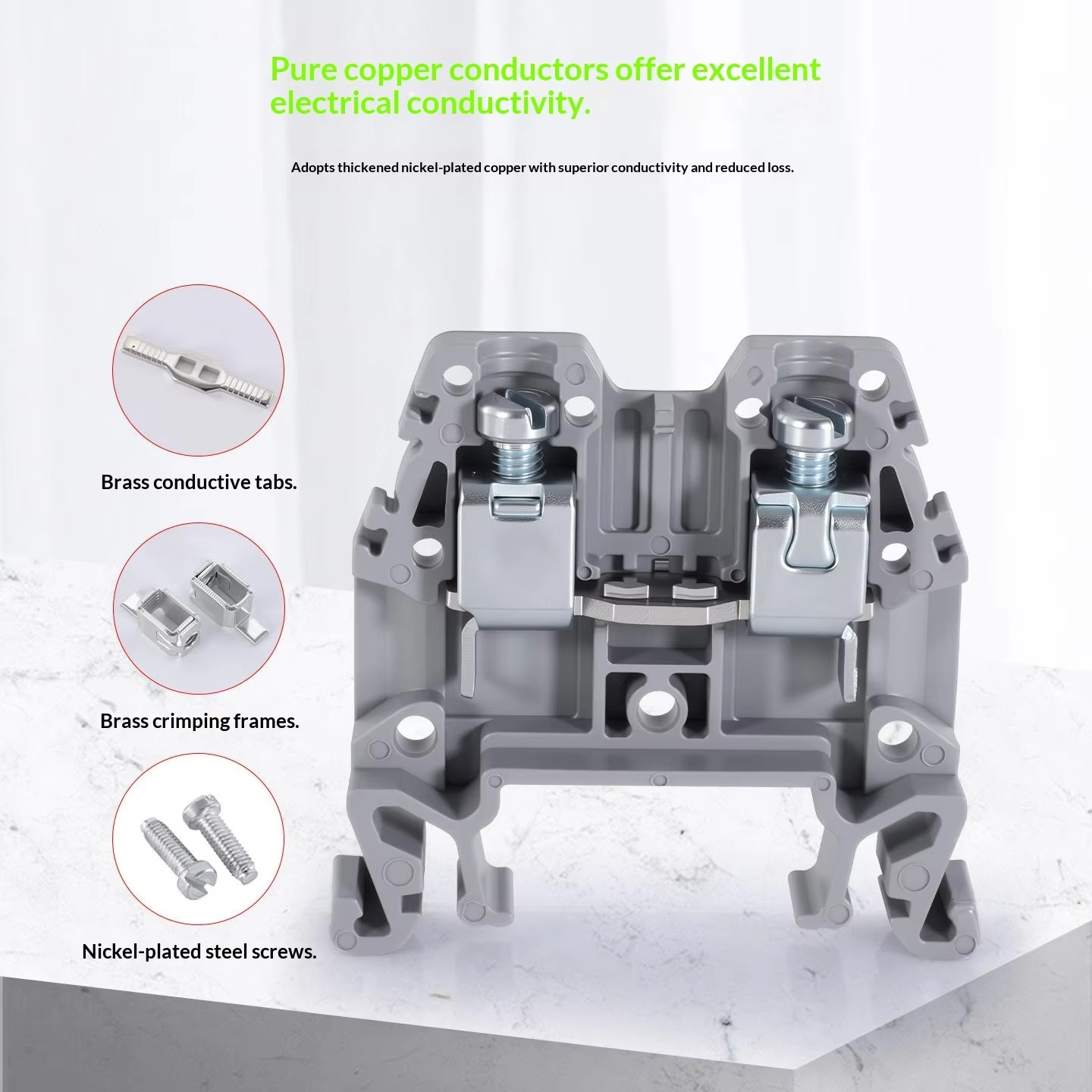

- No thread stripping risk when tightening wires. The screw‑clamp structure holds solid and stranded wire securely.

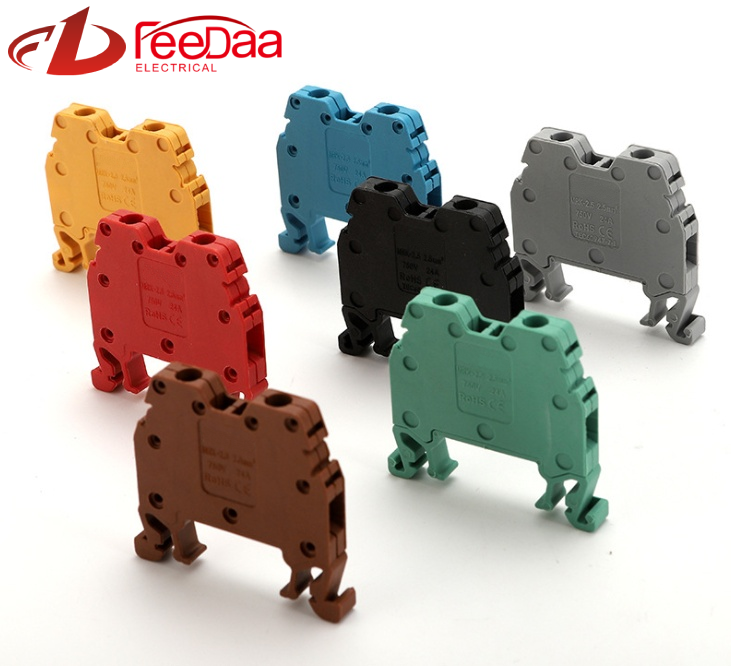

- Multi‑color housing options (grey, blue, red, yellow, green) are available. Technicians can quickly distinguish different power circuits, grounding and signal lines in the wiring cabinet.

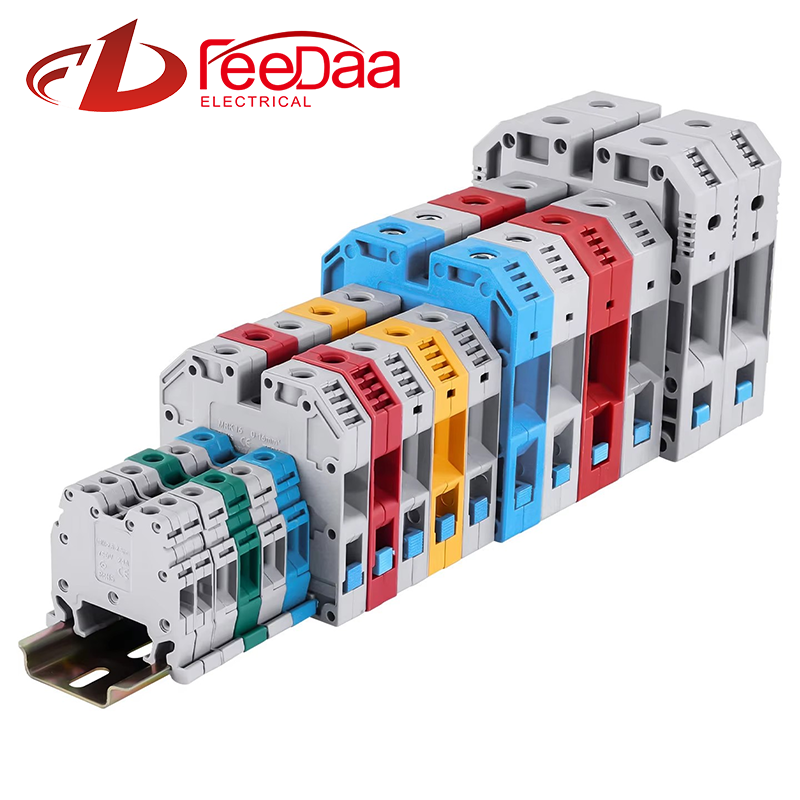

3. Complete specification range

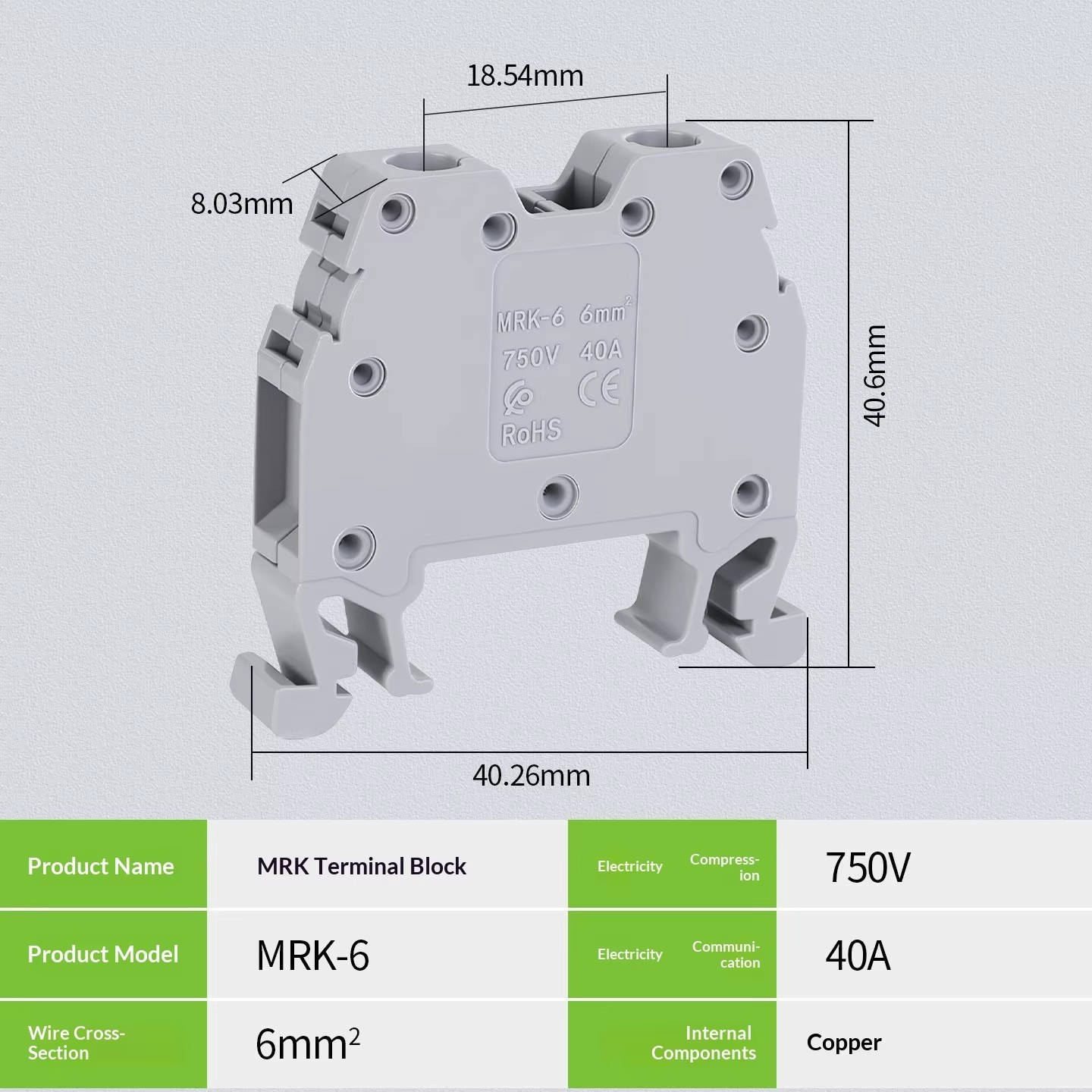

The MRK series covers working voltage from **750V up to 1000V**, rated current ranging from 6.3A‑125A, matching wire cross‑sections starting from small‑size control wires up to heavy‑duty power cables. Taking MRK‑6 as a typical model: rated 750V,40A for 6mm² cable, compact overall dimension saves cabinet space.

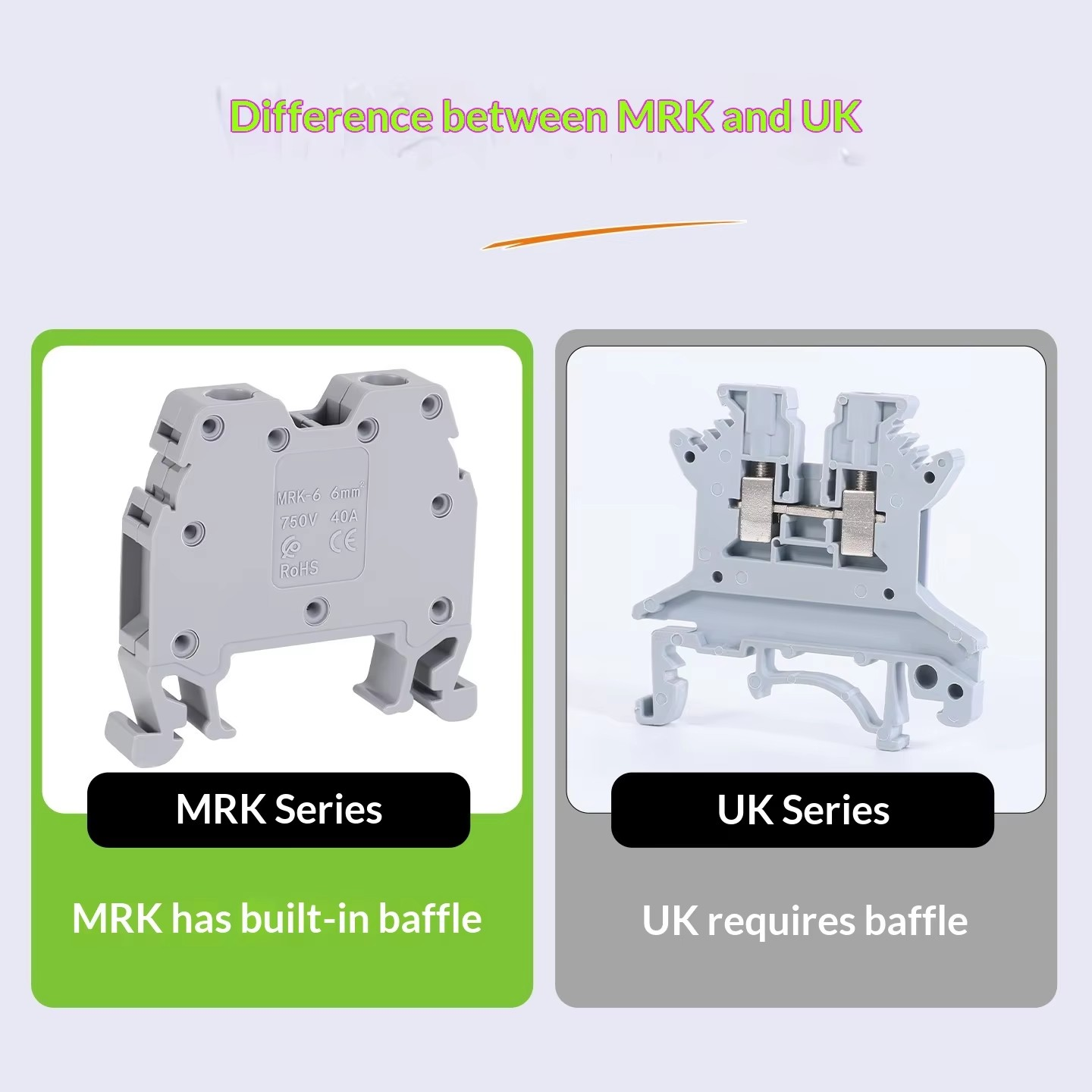

📌 Why choose MRK over traditional UK terminal blocks?
Traditional UK terminal blocks need to add end separators / baffles one‑by‑one after you line‑up many terminals. MRK’s integrated baffle removes this tedious step. It helps electrical contractors shorten cabinet wiring cycle and lowers accessory inventory.
This MRK terminal block series is now in stock for bulk orders, we also welcome OEM & custom color service for your brand project.
