Mini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12T
  • Mini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12TMini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12T
  • Mini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12TMini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12T

Mini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12T

Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T , which can be wholesale, is produced by Chinese manufacturer Feedaa®, have more than ten years of experience in the field of terminal terminals and the specifications and WAGO models are complete. For example, series 221, 222, 2273, etc. If you interested in Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T Tproducts, please contact with us. We will provide you with low-priced and high-quality products, Timely delivery and optimal pre-sales and after-sales service!

Send Inquiry

Product Description

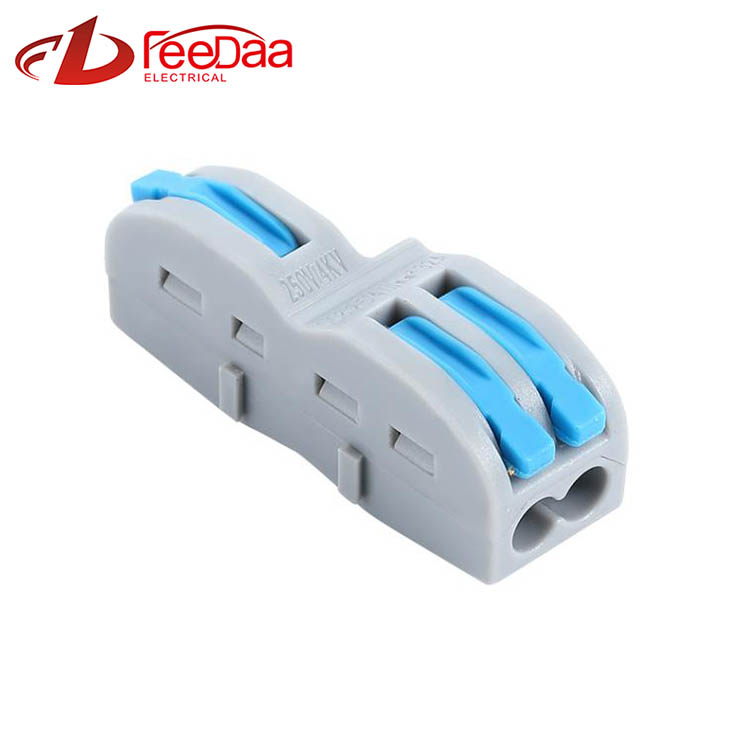

Product Introduction of the Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T:

FeeDaa® specializes in producing the Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T, the connector shell is made of flame-retardant nylon PA66/PC new material, and the inner guide is made of all copper. It can be used for both soft and hard wires, with 1 in and 1 out, and the wiring range is 0.08-2.5mm² (Single hard conductor), 0.08-4.0mm² (Multi-strand flexible conductor), safer, more convenient, and faster than traditional wiring methods in the past. FD-12T is convex, Card slots have been set up, allowing for easy assembly and disassembly as needed. Easy as building blocks.


The following are the main features and benefits of Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T:

▶ Safe and Durable: The shell of the FeeDaa® cable connector is made of flame-retardant nylon PA66/PC new material to prevent wire leakage and explosion. Corrosion resistance, aging resistance, and long service life. The built-in copper can be used at an ambient temperature of 110℃ and has better conductivity.

▶ Efficient and convenient: Fast wiring, no tools required, no damage to the core wire. Simply peel off approximately 9-10mm of the wire casing, open the handle to 90°, insert the wire into the connection port, and press the handle with your hand to complete the wiring. There is no need to worry about twisting between wires. The FeeDaa® connector will make work easier and wiring more aesthetically pleasing.

▶ Compatibility: FeeDaa®'s Mini Quick Wire Connector 1 In Multiple Out| 1 in 2 out 12T can be used for both soft and hard wires, making it ideal for compact and complex applications. Suitable for single strand hard wire 0.08-2.5mm², Multi-strand flexible conductor 0.08-4.0mm².


Product Parameter Specification of the Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T:

Model number

FD-12T

Electrical parameter

250V/4kV/32A

Stripping length

12mm

Specification size

20.5*13*14.5mm

Applicable conductor

Single hard conductor: 0.08-2.5mm2

Multi-strand flexible conductor: 0.08-4.0 mm2

Material

Flame resistant Nylon PA66, also available in PC material, Copper trim

Color

Various color handles available for selection

customized

Accept customization

Brand Name

FeeDaa

Place of Origin

China

Market

Global

Minimum Order Quantity

100pcs

Packaging Details

poly-bag, carton box

Delivery Time

3- 20days

Payment Terms

T/T, Paypal, Western Union, etc


Application Scenarioof the Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T:

Mini Quick Wire Connector 1 In Multiple Out | 1 in 2 out 12T, commonly used scenarios include lighting, electronics, elevators, cars, equipment, household appliances, electrical control systems, etc.

Note: The internal flow bars of this style are independent of each other and the current is not interconnected. The inlet of this style can be connected to wires with different properties.


FAQ


1.Q: Are you manufacturer or trade company?

A:We are manufacturer and specialized in wire connector more than 10 years


2.Q: Can you provide samples ? Are the samples free?

A: Yes, we can provide free samples if quantity not too much but pay delivery fee before delivery


3.Q: Can you make customized products and customized packing?

A: Yes. We made a lot of customized products for our customer before. About customized packing, you send packing details and dimension, we will calculate packing fee.


4.Q: What kind of payment do you accept? Can I pay RMB?

A: We accept T/T and PayPal (100% before delivery), And you can pay money In RMB.


5.Q: How to ship my order?

A: For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS. That's a Door to Door service. For big packages, we will send them by Air or By sea or railway transportation.





Hot Tags: Mini Quick Wire Connector 1 In Multiple Out | 1 In 2 Out 12T, China, Manufacturers, Suppliers, Factory, Wholesale, Cheap, Price, Good price, CE, High Quality, Hot Sale
