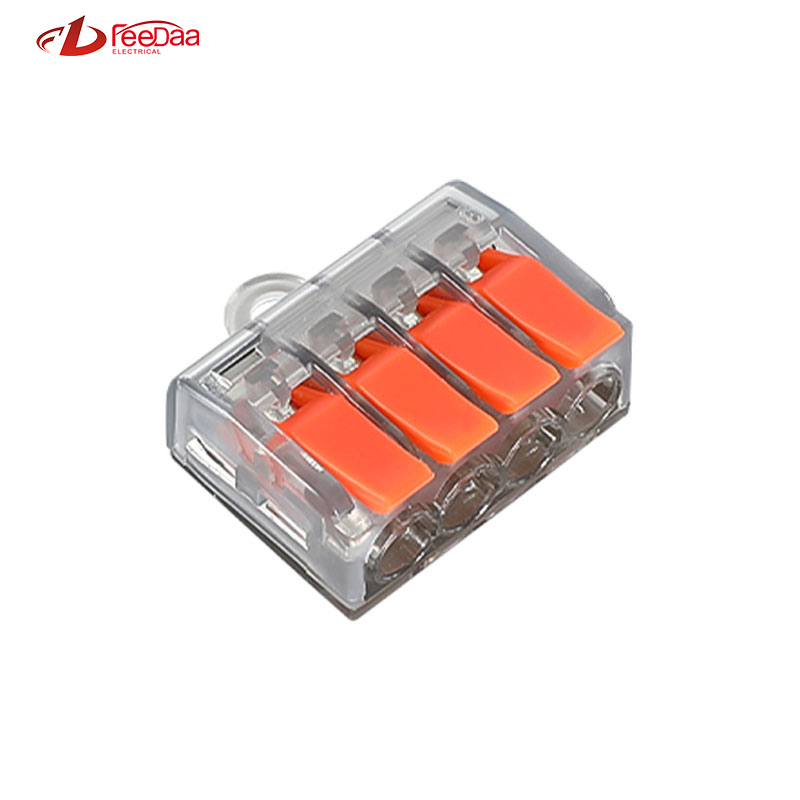

Patented PCT-514G Compact Quick Electric Universal LED Light Connector Red Copper Contacts Power Connectors

FeeDaa® specializes in producing the Fast Wire Cable Connectors| PCT-51, The connector housing is made of flame-retardant PC material, and the inner guide rail is made of all copper. It can be used for both soft and hard wire, and the wiring range is 0.14-4mm²(Single hard conductor),0.14-4mm²(Multi-strand flexible conductor), safer, more convenient, and faster than traditional wiring methods in the past.

The following are the main features and benefits of Fast Wire Cable Connectors| PCT-51

Safe and Durable: The shell of the FeeDaa® cable connector is made of flame-PC material to prevent wire leakage and explosion. Corrosion resistance, aging resistance, and long service life. The built-in copper can be used at an ambient temperature of 110℃ and has better conductivity.

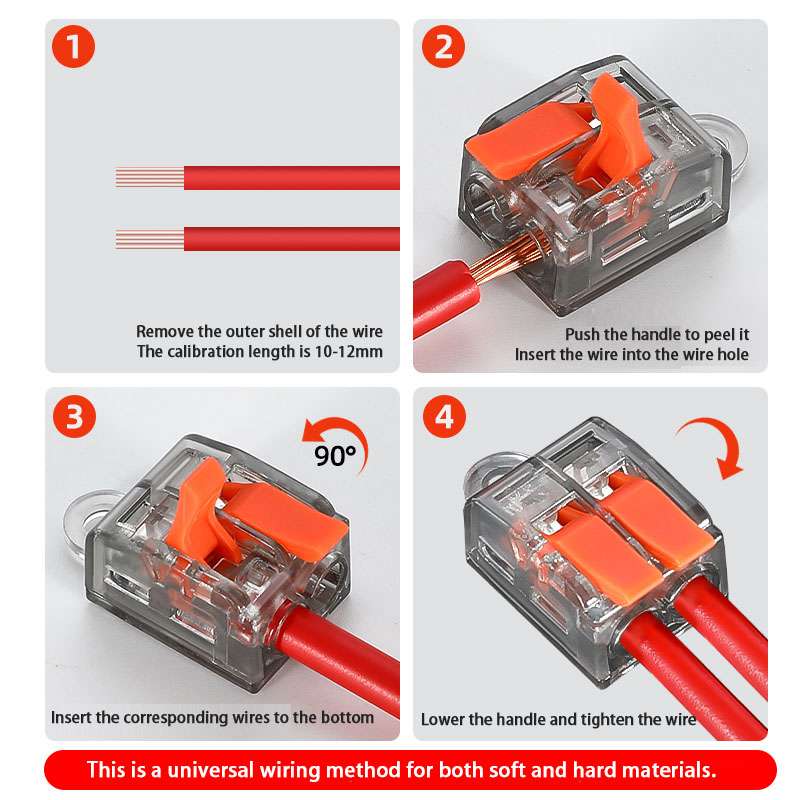

Efficient and convenient: Fast wiring, no tools required, no damage to the core wire. Simply peel off  of the wire casing, open the handle to 90 °, insert the wire into the connection port, and press the handle with your hand to complete the wiring. There is no need to worry about twisting between wires. The FeeDaa®connector will make work easier and wiring more aesthetically pleasing.

Compatibility: FeeDaa® ‘s Wire Cable Connectors|  PCT-51 can be used for both soft and hard wires, making it ideal for compact and complex applications. Suitable for single strand hard wire 0.14-4mm ², Multi-strand flexible conductor 0.14-4mm ².

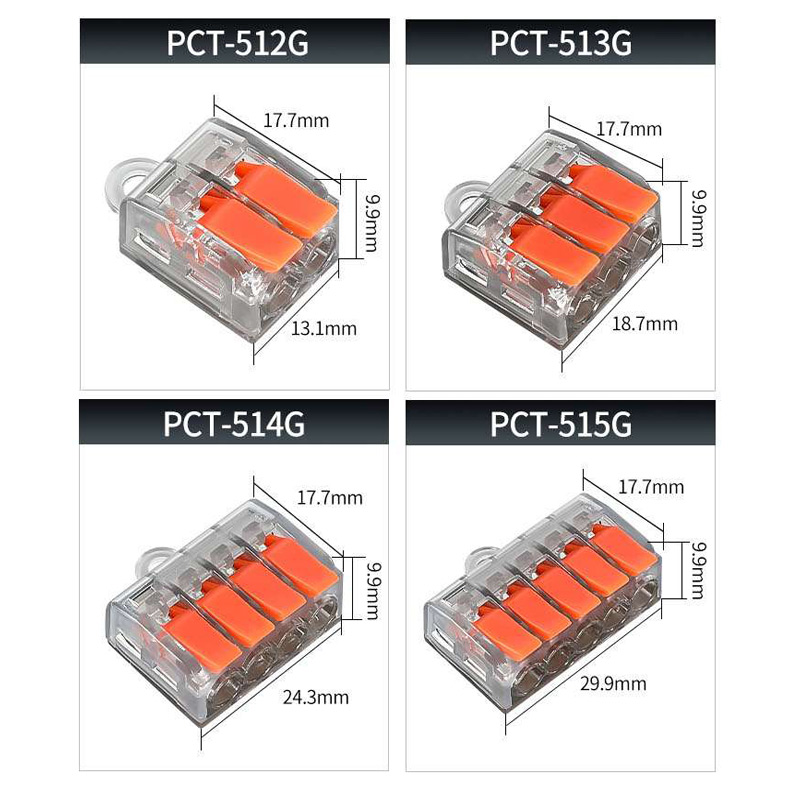

Product Parameter Specification of the Fast Wire Cable Connectors | 1 in 2 out PCT-51

Application Scenario of the Fast Wire Cable Connectors|PCT-51:

Fast Wire Cable Connectors| PCT-51, commonly used scenarios include lighting, electronics, elevators, cars, equipment, household appliances, electrical control systems, etc.

Note: The internal flow bars of this style are independent of each other and the current is not interconnected. The inlet of this style can be connected to wires with different properties

FAQ

1.Q: Are you manufacturer or trade company?

A:We are manufacturer and specialized in wire connector more than 10 years

2.Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide free samples if quantity not too much but pay delivery fee before delivery

3.Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before. About customized packing,you send packing details and dimension,we will calculate packing fee.

4.Q: What kind of payment do you accept ? Can I pay RMB ?

A: We accept T/T and PayPal(100% before delivery）, And you can pay money In RMB.

5.Q : How to ship my order ?

A: For small package, we will send it by Express, such asDHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service. For big packages, we will send them by Air or By sea or railway transportation.
